VYROX Wired Smart Home Solution
Product Description

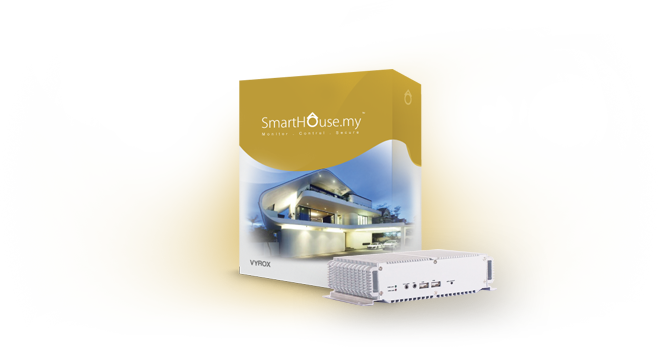

One of the most powerful smart home system in the world. Design and developed by The SmartHouse.my Team using latest VYROX Building Automation Control technologies. A system powered by Intel Processor, Intel motherboard chipset, IBM Server, ARM microprocessors and OMRON contactors. Comply to the industrial standards to give you the highest reliability and durability.
VYROX is a hybrid system which is a combination of "Tree" like network, "Star" like network and "Bus" like network. The system architecture is based on multid-drops designed for scalability and flexibility. Functionality able to be extended by adding variety of modules which is powered by latest ARM microprocessors. On top of that, The system is using VYROX-BUS (V-Bus), which is an automation industrial standard for data transmission and communication between deivces and modules. Also, the system is designed to brings the EMI and EBD to the minimal level to ensure maximum system stability and reliability.
Control Panel Interface
- Google Chrome
- Mozilla Firefox
- Internet Explorer
- Safari
- Opera
- Any browser with HTML & Javascript support
Supporting Devices
- iPad
- iPhone
- iPod
- Android Tablets
- Android Phones
- All web enabled smartphones and tablets
Modules
-

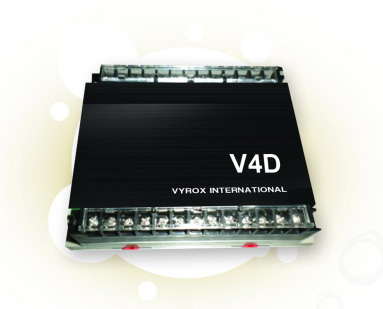

4X Dimmer Lighting Module (V4D) - Control dimmer lighting and create fading effect.
- Maximum Dimmable Circuits: 4
- Fading Effect: Yes
- Fading Steps: 256
- Isolation Technology: Optocoupler Isolation
- Maximum Power Per Circuit: 2500W
- Maximum Voltage Per Circuit: 250V AC
- Maximum Current Per Circuit: 8A
- Communication Mode: Standard V-BUS
- Communication Port: V-BUS 4
- Baud Rates: 1200/2400/4800/9600/19200 bps
- Maximum Modules Per Port: 254
- Size: 110mm (W) X 155mm (L) X 64mm (D)
- Power Supply: 240V AC, 1A
- Ambient Temperature: -20°C ~ 80°C
- Ambient Humidity: 5% ~ 95%
- Warranty Against Manufacturing Defects: 2-Year
-

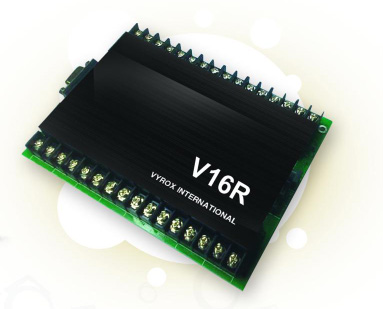

16X Lightings & Home Appliances Module (V16R) - Control lightings and home appliances.
- Relay Brand: OMRON
- Maximum Circuit Controls Per Module: 16
- Maximum Voltage Per Circuit: 270V AC
- Maximum Current Per Circuit: 10A
- Communication Mode: Standard V-BUS
- Communication Port: V-BUS 2 (9 Pin)
- Baud Rate: 9600bps
- Maximum Modules Per Port: 254
- Module Size: 115mm (W) X 150mm (L) X 20mm (D)
- Power Supply: 12V DC, 1.25A
- Ambient Temperature: -20°C ~ 80°C
- Ambient Humidity: 5% ~ 95%
- Warranty Against Manufacturing Defects: 2-Year
-
4X Motor Module (V4M) - Control auto-gates, motorized curtains, motorized blinds/shutters, motorized projector lifts, motorized projector screens.
- Relay Brand: OMRON
- Maximum Motor Controls Per Module: 4
- Maximum Motor Power Per Circuit: 2000V AC
- Maximum Voltage Per Circuit: 250V AC
- Maximum Current Per Circuit: 8A
- Communication Mode: Standard V-BUS
- Communication Port: V-BUS 2 (9 Pin)
- Baud Rate: 9600bps
- Maximum Modules Per Port: 254
- Module Size: 70mm (W) X 140mm (L) X 20mm (D)
- Power Supply: 12V DC, 1A
- Ambient Temperature: -20°C ~ 80°C
- Ambient Humidity: 5% ~ 95%
- Warranty Against Manufacturing Defects: 2-Year
-

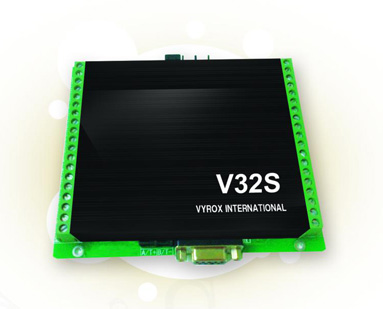

32X Switch Module (V32S) - Connect switches and feedback status to system.
- Maximum Dry Contacts Input Per Module: 32
- Average Response Time: 0.6s
- Dry Contact Input Voltage Range Per Channel: 12V
- Communication Mode: Standard V-BUS
- Communication Port: V-BUS 2 (9 Pin) & V-BUS 4
- Baud Rate: 9600bps
- Maximum Modules Per Port: 6
- Module Size: 110mm (W) X 130mm (L) X 20mm (D)
- Power Supply: 12V DC, 1A
- Ambient Temperature: -20°C ~ 80°C
- Ambient Humidity: 5% ~ 95%
- Warranty Against Manufacturing Defects: 2-Year
-
16X Alarm Security Module (V16S) - Manage motion sensors, magnetic sensors, vibration sensors, smoke sensors, gas sensors, etc.
- Maximum Security Zones Per Module: 16
- Average Response Time: 0.05s
- Support Request To Send (RTS): Yes
- Dry Contact Input Voltage Range Per Channel: 5V ~ 24V
- Isolation Technology: Optocoupler Isolation
- Communication Mode: Standard V-BUS
- Communication Port: V-BUS 2 (9 Pin) & V-BUS 4
- Baud Rate: 9600bps
- Maximum Modules Per Port: 1
- Modu7le Size: 110mm (W) X 130mm (L) X 20mm (D)
- Power Supply: 12V DC, 1A
- Ambient Temperature: -20°C ~ 80°C
- Ambient Humidity: 5% ~ 95%
- Warranty Against Manufacturing Defects: 2-Year
-

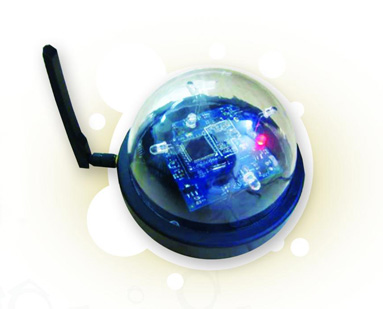

30X Infrared Module (V30IR) - Control LED strips, air-conditioners, fan, audio and video systems, etc.
- Maximum Infrared Commands: 30
- Signal Transmission Directions: All
- Communication Method: 802.11 b/g/n WIFI
- Communication Protocol: TCP/IP/UDP
- Infrared Learning Range: 10khz ~ 80khz
- Size: 50mm (W) X 50mm (L) X 20mm (H)
- Power Supply: 5V, 0.5A
- Ambient Humidity: 5% ~ 95%
- Ambient Temperature: -20°C ~ 80°C
- Warranty Against Manufacturing Defects: 2-Year
-

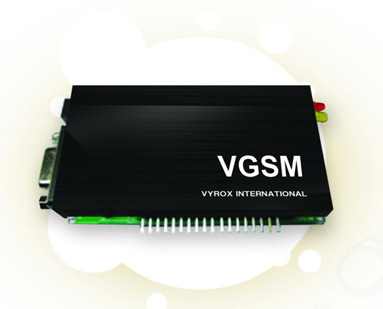

GSM Module (V-GSM) - Report system status by sending text messages (SMS) via GSM network.
- GSM Chipset: SIEMENS TC35
- Frequency Band: Dual-Band EGSM900 & GSM1800
- Communication Mode: Standard V-BUS
- Communication Port: V-BUS 2 (9 Pin)
- Baud Rate: 1.2kbps ~1.5 kbps
- Support Voice Calls: Yes
- Audio Rate: Half Rate (HR)/Full Rate(FR)/Enhanced Full Rate (EFR)
- Size: 55mm (W) X 85mm (L) X 20mm (H)
- Power Supply: 5V ~ 24V, 1A
- Ambient Humidity: 5% ~ 95%
- Ambient Temperature: -20°C ~ 55°C
- Warranty Against Manufacturing Defects: 2-Year
Videos
e-Brochure
Please download to read more.
